Testomat.io Java Reporter

Run tests with JUnit, TestNG, Cucumber, Karate and automatically publish results, steps, artifacts and metadata to Testomat.

Features

Automatic test result reporting
TestId synchronization with Testomat.io
Test filtering by IDs
Step-by-step execution reporting
Artifact uploads (screenshots, logs, videos)
Shared and public test runs
Allure integration (via Testomat Allure Adapter)

Supported Frameworks

Framework	Supported Version	Java Version
JUnit	5.x	11+
TestNG	7.x	11+
Cucumber	7.x	11+
Karate	1.x	17+

Quick Start

1. Install Reporter

Add the Testomat reporter dependency that matches your test framework. Detailed setup instructions for JUnit, TestNG, Cucumber, and Karate are provided below.

JUnit 5

<dependency>
    <groupId>io.testomat</groupId>
    <artifactId>java-reporter-junit</artifactId>
    <version><LATEST_STABLE_VERSION></version>
</dependency>

TestNG

<dependency>
    <groupId>io.testomat</groupId>
    <artifactId>java-reporter-testng</artifactId>
    <version><LATEST_STABLE_VERSION></version>
</dependency>

Cucumber

<dependency>
    <groupId>io.testomat</groupId>
    <artifactId>java-reporter-cucumber</artifactId>
    <version><LATEST_STABLE_VERSION></version>
</dependency>

Karate

<dependency>
    <groupId>io.testomat</groupId>
    <artifactId>java-reporter-karate</artifactId>
    <version><LATEST_STABLE_VERSION></version>
</dependency>

Choose only one dependency corresponding to your test framework.

After adding the dependency continue with the framework-specific setup instructions below.

2. Configure API Key

Using environment variables:

export testomatio=tstmt_your_project_api_key

Or using testomatio.properties:

testomatio=tstmt_your_project_api_key
testomatio.run.title=Nightly Regression

Or pass properties via JVM arguments:

mvn test \
  -Dtestomatio=tstmt_your_project_api_key \
  -Dtestomatio.run.title="Nightly Regression"

3. Run Tests

mvn test

If a valid API key is provided reporting starts automatically.

Disable Reporting

testomatio.reporting.disable=1

Framework Setup

JUnit

Create:

src/main/resources/junit-platform.properties

Add:

junit.jupiter.extensions.autodetection.enabled=true

TestNG

No additional setup required.

Cucumber

@ConfigurationParameter(
    key = PLUGIN_PROPERTY_NAME,
    value = "pretty, io.testomat.cucumber.listener.CucumberListener"
)

Karate

.hookFactory(KarateHookFactory.create())

Test Code Synchronization

Keeping Test IDs synchronized between your codebase and Testomat.io is strongly recommended.

Use Java Check Tests CLI to:

Import tests into Testomat.io
Synchronize Test IDs
Update existing IDs
Remove obsolete IDs

Download and Update IDs

UNIX / macOS:

export TESTOMATIO_URL=...
export TESTOMATIO=...

curl -L -O \
https://github.com/testomatio/java-check-tests/releases/latest/download/java-check-tests.jar

java -jar java-check-tests.jar update-ids

Windows:

set TESTOMATIO_URL=...
set TESTOMATIO=...

curl -L -O https://github.com/testomatio/java-check-tests/releases/latest/download/java-check-tests.jar

java -jar java-check-tests.jar update-ids

Configuration Options

Required Settings

 # Your Testomat.io project API key (find it in your project settings)
testomatio=tstmt_your_key_here

Or provide it as JVM property or ENV variable.
IMPORTANT: The reporter runs automatically when the testomatio API key is configured.

Customization

Here are the options to customize the reporting in the way you need:

Setting	What it does	Default	Example
`testomatio.reporting.disable`	Disables reporting	none	`true` / `1`
`testomatio.run.title`	Custom name for your test run	`default_run_title`	`"Nightly Regression Tests"`
`testomatio.env`	Environment name (dev, staging, prod)	(none)	`"staging"`
`testomatio.run.group`	Group related runs together	(none)	`"sprint-23"`
`testomatio.publish`	Make results publicly shareable	(private)	Any not null/empty/“0” string, “0” to disable

Advanced Integration

Setting	What it does	Example
`testomatio.url`	Custom Testomat.io URL (for enterprise)	`https://app.testomat.io/`
`testomatio.run.id`	Add results to existing run	`"run_abc123"`
`testomatio.create`	Auto-create missing tests in Testomat.io	`true` / `1`
`testomatio.shared.run`	Shared run name for team collaboration	`any_name`
`testomatio.shared.run.timeout`	How long to wait for shared run	`3600` / `1`
`testomatio.export.required`	Exports your tests code to Testomat.io	`true` / `1`

Test Identification & Titles

Connect your code tests directly to your Testomat.io test cases using simple annotations! As mentioned above test IDs are recommended to be synced with Java-Check-Tests CLI. But @Title usage is up to you.

For JUnit & TestNG

Use @TestId and @Title annotations to make your tests perfectly trackable:

Tip: With @TestId annotations in place you can filter and run specific tests by their IDs see Test Filtering by ID below.

import com.testomatio.reporter.annotation.TestId;
import com.testomatio.reporter.annotation.Title;

public class LoginTests {

    @Test
    @TestId("auth-001")
    @Title("User can login with valid credentials")
    public void testValidLogin() {
        // Your test code here
    }

    @Test
    @TestId("auth-002")
    @Title("Login fails with invalid password")
    public void testInvalidPassword() {
        // Your test code here
    }

    @Test
    @Title("User sees helpful error message")  // Just title, auto generated ID
    public void testErrorMessage() {
        // Your test code here
    }
}

Linking Multiple Test Cases

Links test IDs to the current test in the report. This allows you to associate multiple test cases with the current test execution.

    @TestId("aba4b142")
    @LinkTest({"aba4b143", "aba4b144"})
    @Test
    public void test() {
        // Your test code here
    }

For Cucumber

Feature: User Authentication

  @TestId:auth-001
  Scenario: Valid user login
    Given user is on login page
    When user enters valid credentials
    Then user should be logged in successfully

  @TestId:auth-002
  Scenario: Invalid password login
    Given user is on login page
    When user enters invalid password
    Then login should fail

  @TestId:auth-003
  Scenario: Error message display
    Given user is on login page
    When login fails
    Then error message should be displayed

For Karate

Feature: Posts API

  Background:
    * url 'https://jsonplaceholder.typicode.com'
    * def assertStatus = Java.type('helpers.AssertStatus')

  @Title:Get_all_posts @Tpost0001 @Attachments:logs/karate.log
  Scenario: Get all posts
    Given path 'posts'
    When method get
    Then eval assertStatus.checkStatusCode(responseStatus, 200)
    And match response[0].id != null

  @Title:Get_single_post @Tpost0002
  Scenario: Get single post
    Given path 'posts', 1
    When method get
    Then eval assertStatus.checkStatusCode(responseStatus, 200)
    And match response.id == 1

  @Title:Get_comments_for_post @Tpost0003
  Scenario: Get comments for post
    Given path 'posts', 1, 'comments'
    When method get
    Then eval assertStatus.checkStatusCode(responseStatus, 200)
    And match response[0].postId == 1

  @Title:Validate_post_titles @Tpost0004
  Scenario Outline: Validate post titles
    Given path 'posts', <id>
    When method get
    Then eval assertStatus.checkStatusCode(responseStatus, 200)
    And match response.title != null

    Examples:
      | id |
      | 1  |
      | 2  |
      | 3  |

  @Title:Create_post @Tpost0005
  Scenario: Create post
    Given path 'posts'
    And request { title: 'foo', body: 'bar', userId: 1 }
    When method post
    Then eval assertStatus.checkStatusCode(responseStatus, 200)
    And match response.id != null

Test Artifacts Support

The Java Reporter supports attaching files (screenshots, logs, videos etc.) to your test results and uploading them to S3 compatible storage.
Artifacts handling is enabled by default but it won’t affect the run if there are no artifacts provided (see options below).

Configuration

Artifacts are stored in external S3 buckets. S3 Access can be configured in two different ways:

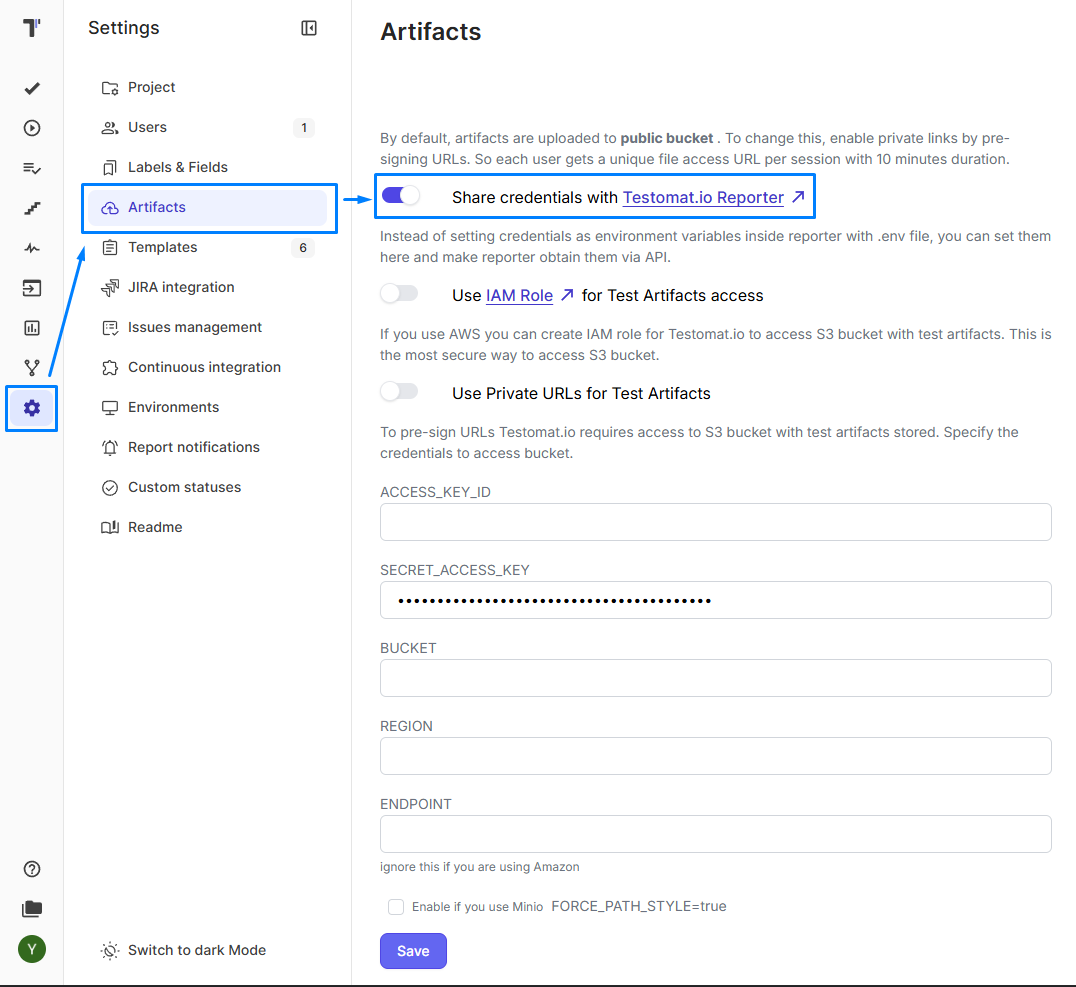

Make configurations on the Testomat.io:
Choose your project -> click Settings button on the left panel -> click Artifacts -> Toggle “Share credentials…”
Provide options as environment variables/jvm property/testomatio.properties file.

NOTE: Environment variables(env/jvm/testomatio.properties) take precedence over server provided credentials.

Setting	Description	Default
`testomatio.artifact.disable`	Completely disable artifact uploading	`false`
`testomatio.artifact.private`	Keep artifacts private (no public URLs)	`false`
`testomatio.step.artifacts.enabled`	Enables uploading artifacts for test steps	`false`
`s3.force-path-style`	Use path-style URLs for S3-compatible storage	`false`
`s3.endpoint`	Custom endpoint to be used with force-path-style	`false`
`s3.bucket`	Provides bucket name for configuration
`s3.access-key-id`	Access key for the bucket
`s3.secret.access-key-id`	Secret access key for the bucket
`s3.region`	Bucket region	`us-west-1`
`s3.assume.role.arn`	AWS IAM role ARN used for AssumeRole authentication
`s3.assume.role.external.id`	External ID for AssumeRole authentication

Note: S3 credentials can be configured either in properties file or provided automatically on Testomat.io UI. Environment variables take precedence over server-provided credentials.

Usage

Use the Testomatio facade to attach files to your tests. Multiple files can be provided to the Testomatio.artifact(String ...) method.

import io.testomat.core.facade.Testomatio;

public class MyTest {

    @Test
    public void testWithScreenshot() {
        // Your test logic

        // Attach artifacts (screenshots, logs etc.)
        Testomatio.artifact(
                "/path/to/screenshot.png",
                "/path/to/test.log"
        );
    }
}

Karate

  @Attachments:logs/karate.log
  Scenario: Get all posts
    Given path 'posts'
    When method get
    Then eval assertStatus.checkStatusCode(responseStatus, 200)
    And match response[0].id != null

Please make sure you provide the path to the artifact file including its extension.

Using `@Artifact`

This provides a declarative alternative to Testomatio.artifact(...).

Artifacts can also be attached automatically by annotating a method with @Artifact.

Supported return types:

String – file path
Path
File

Example:

import io.testomat.core.annotation.Artifact;

@Artifact
public Path screenshot(Path file) {
    return file;
}

When the annotated method completes successfully the returned file is automatically collected and uploaded as an artifact.

@Artifact can be used:

At the test level – the artifact is attached to the current test
Inside a @Step method or an active step the artifact is attached to the current step

Example:

@Test
public void loginTest() {
    Path screenshot = takeScreenshot();

    attachTestomatScreenshot(screenshot);
}

Step level example:

@Step("Verify dashboard")
public void verifyDashboard() {
    Path screenshot = takeScreenshot();

    attachTestomatScreenshot(screenshot);
}

@Artifact
public Path attachTestomatScreenshot(Path screenshot) {
    return screenshot;
}

Note: Methods annotated with @Artifact must return a valid file path (String, Path or File). Unsupported return types are ignored.

How It Works

S3 Upload: Files are uploaded to your S3 bucket with organized folder structure
Link Generation: Public URLs are generated and attached to test results
Artifacts are visible at the test info on UI

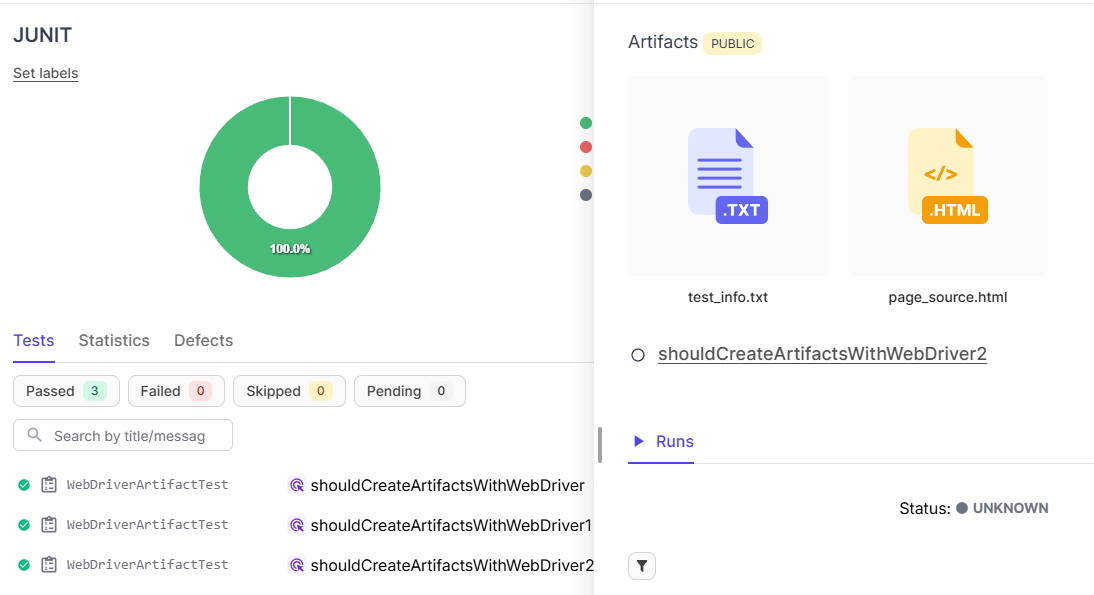

As a result you will see something like this in the UI after the run is completed:

artifact example

Step-by-Step Reporting

Track detailed test execution flow using the @Step annotation.
Steps provide granular visibility into test logic and help identify exactly where tests succeed or fail.

Setup

Add AspectJ weaver to your test execution via maven-surefire-plugin:

<build>
    <plugins>
        <plugin>
            <groupId>org.apache.maven.plugins</groupId>
            <artifactId>maven-surefire-plugin</artifactId>
            <version>3.2.2</version>
            <configuration>
                <argLine>
                    -javaagent:"${settings.localRepository}/org/aspectj/aspectjweaver/1.9.24/aspectjweaver-1.9.24.jar"
                </argLine>
            </configuration>
        </plugin>
    </plugins>
</build>

Basic Usage

Annotate methods with @Step to track their execution:

import io.testomat.core.annotation.Step;

public class LoginTest {

    @Test
    public void testUserLogin() {
        openLoginPage();
        enterCredentials("user@example.com", "password123");
        clickLoginButton();
        verifyUserLoggedIn();
    }

    @Step("Open login page")
    private void openLoginPage() {
        driver.get("https://example.com/login");
    }

    @Step("Enter credentials")
    private void enterCredentials(String email, String password) {
        driver.findElement(By.id("email")).sendKeys(email);
        driver.findElement(By.id("password")).sendKeys(password);
    }

    @Step("Click login button")
    private void clickLoginButton() {
        driver.findElement(By.id("login-btn")).click();
    }

    @Step("Verify user is logged in")
    private void verifyUserLoggedIn() {
        assertTrue(driver.findElement(By.id("user-profile")).isDisplayed());
    }
}

Parameter Substitution

Use placeholders to make step descriptions dynamic:

Indexed placeholders (always work):

@Step("Search for {0} in category {1}")
private void search(String query, String category) {
    // Step will show: "Search for laptop in category electronics"
}

Named placeholders (require -parameters compiler flag):

@Step("Login as {username} with {password}")
private void login(String username, String password) {
    // Step will show: "Login as admin with secret123"
}

To enable named placeholders add to pom.xml:

<plugin>
    <groupId>org.apache.maven.plugins</groupId>
    <artifactId>maven-compiler-plugin</artifactId>
    <configuration>
        <parameters>true</parameters>
    </configuration>
</plugin>

Setup step logging for Karate tests

  Background
    * def stepMarker = Java.type('io.testomat.karate.marker.StepMarker')
    * def step = stepMarker.mark

After this step() can be used as a regular Karate function.

Usage without a title

    * step()
    Given path 'posts'

Log example: path 'posts'

Usage with a title

    * step('Send get request')
    When method get

Log example: Send get request

Logging all steps with @LogSteps

If a scenario is annotated with the @LogSteps tag all Karate steps in that scenario will be logged automatically.

Example

  Background:
      * url 'https://jsonplaceholder.typicode.com'
      * def assertStatus = Java.type('helpers.AssertStatus')
      * def stepMarker = Java.type('io.testomat.karate.marker.StepMarker')
      * def step = stepMarker.mark

  @Title:Get_all_posts @TestId:Tpost0001 @attachments:logs/karate.log
  Scenario: Get all posts
    * step()
    Given path 'posts'
    * step('Send get request')
    When method get
    Then eval assertStatus.checkStatusCode(responseStatus, 200)
    * step("Check response id is not null")
    And match response[0].id != null

  @Title:Get_single_post @TestId:Tpost0002 @LogSteps
  Scenario: Get single post
    Given path 'posts', 1
    When method get
    Then eval assertStatus.checkStatusCode(responseStatus, 200)
    And match response.id == 1

Steps can also be created using Testomatio.step(stepName, Runnable action).

    Testomatio.step("Login", () -> {
        // actions
    });

If executed inside another step (including methods annotated with @Step) a substep will be created automatically.

    Testomatio.step("Login", () -> {
        // actions
        Testomatio.step("Check page", () -> {
            // actions
        });
    });

    @Step("Open login page")
    private void openLoginPage() {
        Testomatio.step("Check page", () -> {
            driver.get("https://example.com/login");
        });
    }

Adding artifacts to steps

Artifacts can be attached to a step using the artifacts attribute of the @Step annotation.

Methods annotated with @Artifact also support step-level attachment when executed inside a step.

@Step(value = "Login", artifacts = {"path_to_artifact1", "path_to_artifact2"})
public void login() {
    // test logic
}

Artifacts will be automatically collected after the step execution.

You can also attach artifacts to a step programmatically:

    Testomatio.stepArtifact("path_to_attachment1", "path_to_attachment2");

If called inside a step the artifacts will be attached to the current step.

If called after a step finishes it will be attached to the last completed step.

What You’ll See

Steps appear in test reports with:

Step title
Execution duration
Order of execution

This provides complete transparency into test flow and helps debug failures quickly.

Test Filtering by ID

JUnit & TestNG only

Note:

Cucumber tests can be filtered using native Cucumber tags functionality (`@tag` in feature files and `cucumber.filter.tags` property).
Karate supports tagging of features and scenarios using the standard Gherkin tag syntax (@tag). Tags allow you to organize, group and selectively run tests.

Run specific tests by their @TestId values using the -Dids parameter. This is useful for:

Running smoke tests or critical path tests
Re-running failed tests from previous runs
Debugging specific test cases
CI/CD pipelines with test subsets

Usage

Filter tests by comma-separated test IDs:

# Run single test
mvn test -Dids=smoke-001

# Run multiple tests
mvn test -Dids=smoke-001,smoke-002,smoke-003

# Combine with other parameters
mvn test \
  -Dids=smoke-001,smoke-002 \
  -Dtestomatio=tstmt_your_key \
  -Dtestomatio.run.title="Smoke Tests"

Example

public class LoginTests {

    @Test
    @TestId("smoke-001")
    public void testValidLogin() {
        // This test will run with -Dids=smoke-001
    }

    @Test
    @TestId("smoke-002")
    public void testInvalidPassword() {
        // This test will run with -Dids=smoke-002
    }

    @Test
    public void testOtherFeature() {
        // This test will be skipped when filtering by IDs
    }
}

Behavior

Tests without @TestId: Included when no filter is applied; skipped when -Dids is provided
Tests with matching IDs: Always run when their ID is in the filter list
Tests with non-matching IDs: Skipped

Common Usage Scenarios

Basic Usage

# Simple run with custom title
mvn test \
  -Dtestomatio=tstmt_your_key \
  -Dtestomatio.run.title="My Feature Tests"

Team Collaboration

# Shared run that team members can contribute to
mvn test \
  -Dtestomatio=tstmt_your_key \
  -Dtestomatio.shared.run="integration-tests" \
  -Dtestomatio.env="staging"

Stakeholder Demo

# Public report for sharing with stakeholders
mvn test \
  -Dtestomatio=tstmt_your_key \
  -Dtestomatio.run.title="Demo for Product Team" \
  -Dtestomatio.publish=1

What You’ll See

When your tests start running you’ll see helpful output like this:

console img

You get two types of links:

Private Link: Full access on Testomat.io platform (for your team)
Public Link: Shareable read only view (only if you set testomatio.publish=1)

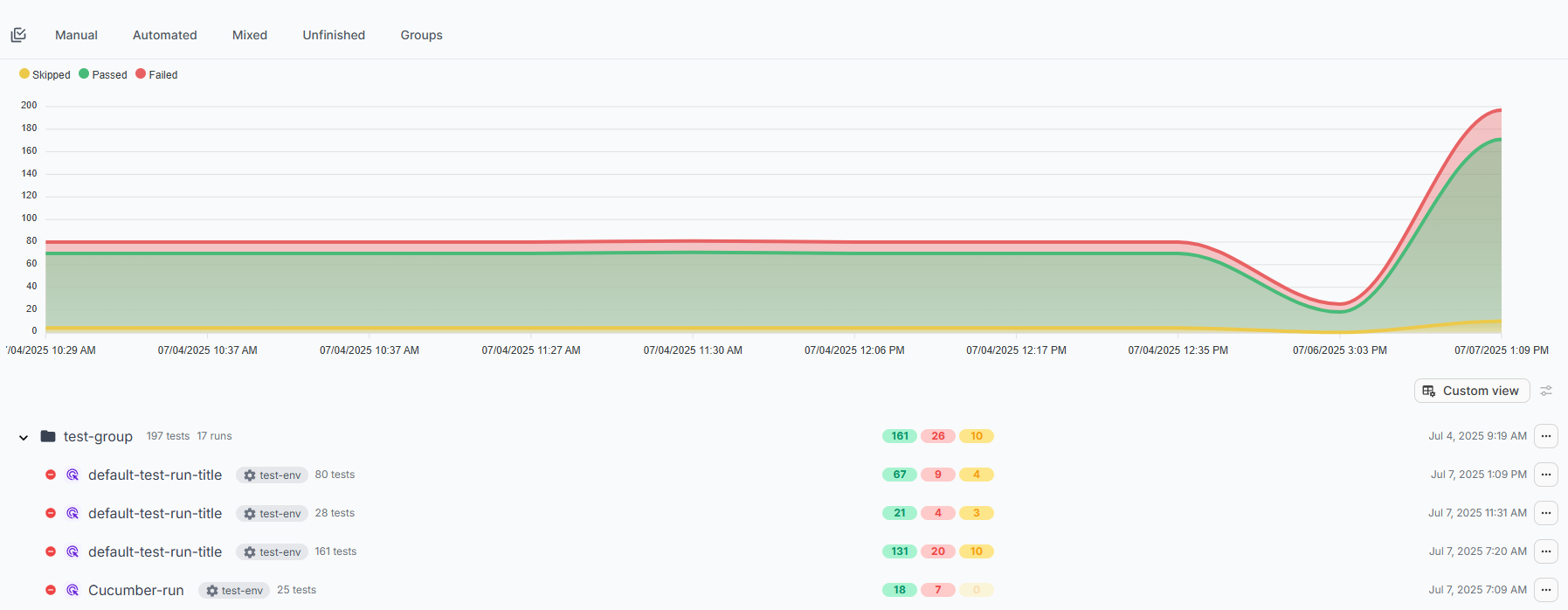

And the dashboard something like this:

Description

Advanced Customization

There are void hooks in the listeners that allow you to customize reporting much more. These hooks are located in the listeners’ tests lifecycle methods according to their names. External API calls, logging and any custom logic can be added to the hooks. The hooks are executed after the lifecycle method logic finishes and do not replace it.

JUnit, TestNG

Complete the Simple Setup first
Create a new class that extends JunitListener or TestNgListener based on your needs. Implement protected methods from the library listener and add custom logic to them.

Create the services directory:

   src/main/resources/META-INF/services/

Create the right configuration file:

Framework Create this file:
JUnit 5 org.junit.jupiter.api.extension.Extension
TestNG org.testng.ITestNGListener

Framework	Create this file:
JUnit 5	`org.junit.jupiter.api.extension.Extension`
TestNG	`org.testng.ITestNGListener`

Add your custom class path to the file:

 com.yourcompany.yourproject.CustomListener

Cucumber

Complete the Simple Setup first
Create a new class that extends CucumberListener. Implement protected methods from the library listener and add custom logic to them.
Add com.yourcompany.yourproject.YOUR_CUSTOM_LISTENER as @ConfigurationParameter value to your TestRunner class. Like this:

    @ConfigurationParameter(key = PLUGIN_PROPERTY_NAME, value = "pretty, com.yourcompany.yourproject.YOUR_CUSTOM_LISTENER")

Karate

Create your custom karate hook that implements method of RuntimeHook public class MyHook implements RuntimeHook {}
Implement and override necessary methods
Register the hook using a factory

   Runner.path("classpath:karateTests")
      .hookFactory(KarateHookFactory.create(MyHook::new))
      .outputCucumberJson(true)
      .outputJunitXml(true)
      .parallel(4);

You can register multiple hooks by passing multiple factories

    Runner.path("classpath:karateTests")
      .hookFactory(KarateHookFactory.create(
            MyHook::new,
            AnotherHook::new,
            CustomHook::new))
      .outputCucumberJson(true)
      .outputJunitXml(true)
      .parallel(4);

Testomat Allure Adapter

Testomat Allure Reporter is a Java integration library that bridges Allure reporting with Testomat.io test management system.

The library automatically captures test metadata, titles, steps and attachments from Allure and sends them to Testomat.io providing seamless synchronization between test execution and test management.

Key features:

Automatic test title synchronization
Allure step reporting
Attachment upload support
JUnit and TestNG integration
Minimal configuration required

To enable Testomat Allure integration add the following dependency:

<dependencies>
    <dependency>
        <groupId>io.testomat</groupId>
        <artifactId>testomat-allure-adapter</artifactId>
        <version>${testomat-allure-adapter-version}</version>
    </dependency>
</dependencies>

<build>
    <plugins>
        <plugin>
            <groupId>org.apache.maven.plugins</groupId>
            <artifactId>maven-surefire-plugin</artifactId>
            <version>3.2.2</version>
            <configuration>
                <argLine>
                    -javaagent:"${settings.localRepository}/org/aspectj/aspectjweaver/1.9.24/aspectjweaver-1.9.24.jar"
                </argLine>
            </configuration>
        </plugin>
    </plugins>
</build>

Troubleshooting

Tests not appearing in Testomat.io?

Check your API key - it should start with tstmt_ and be related to the project you’re looking at.
Verify internet connection - the reporter needs to reach app.testomat.io
Enable auto-creation - add -Dtestomatio.create=true to create missing tests

Framework not detected?

JUnit 5: Make sure junit-platform.properties exists with autodetection enabled
Cucumber: Verify the listener is in your @CucumberOptions plugins
TestNG: Should work automatically if nothing is overridden - check your TestNG version (need 7.x)
Karate: Verify that the KarateHookFactory is installed .hookFactory(KarateHookFactory.create())

Nothing helps?

Create an issue. We’ll fix it!

Support

If you find this project useful:

Star the repository
Report issues
Suggest improvements
Share feedback

We appreciate your support.

Testomat.io Java Reporter

Features

Supported Frameworks

Quick Start

1. Install Reporter

JUnit 5

TestNG

Cucumber

Karate

2. Configure API Key

3. Run Tests

Disable Reporting

Framework Setup

JUnit

TestNG

Cucumber

Karate

Test Code Synchronization

Download and Update IDs

Configuration Options

Required Settings

Customization

Advanced Integration

Test Identification & Titles

For JUnit & TestNG

Linking Multiple Test Cases

For Cucumber

For Karate

Test Artifacts Support

Configuration

Usage

Using @Artifact

How It Works

Step-by-Step Reporting

Setup

Basic Usage

Parameter Substitution

Setup step logging for Karate tests

Usage without a title

Usage with a title

Logging all steps with @LogSteps

Example

Adding artifacts to steps

What You’ll See

Test Filtering by ID

Usage

Example

Behavior

Common Usage Scenarios

Basic Usage

Team Collaboration

Stakeholder Demo

What You’ll See

Advanced Customization

JUnit, TestNG

Cucumber

Karate

Testomat Allure Adapter

Troubleshooting

Tests not appearing in Testomat.io?

Framework not detected?

Nothing helps?

Support

Using `@Artifact`
